Generator diesel Cummins 6CTA8.3-G2 menghasilkan daya utama dan daya siaga yang andal sebesar 150kW (188kVA) untuk aplikasi yang sangat penting.
Merek:
Dongfeng CumminsItem no.:
ZC206Pesanan (MOQ):
1Pembayaran:
T/T 30%, 70% Before shipmentAsal Produk:
ChinaPelabuhan Pengiriman:
Xiamen, ChinaWaktu tunggu：
3-4weeksBerat：
2460Generator Set Diesel Bertenaga Mesin Cummins 6CTA8.3-G2 150kw 188kva
Featuring Cummins' legendary mechanical engine reliability and simple maintenance design, this 6-cylinder workhorse is engineered for 24/7 operation in harsh environments.

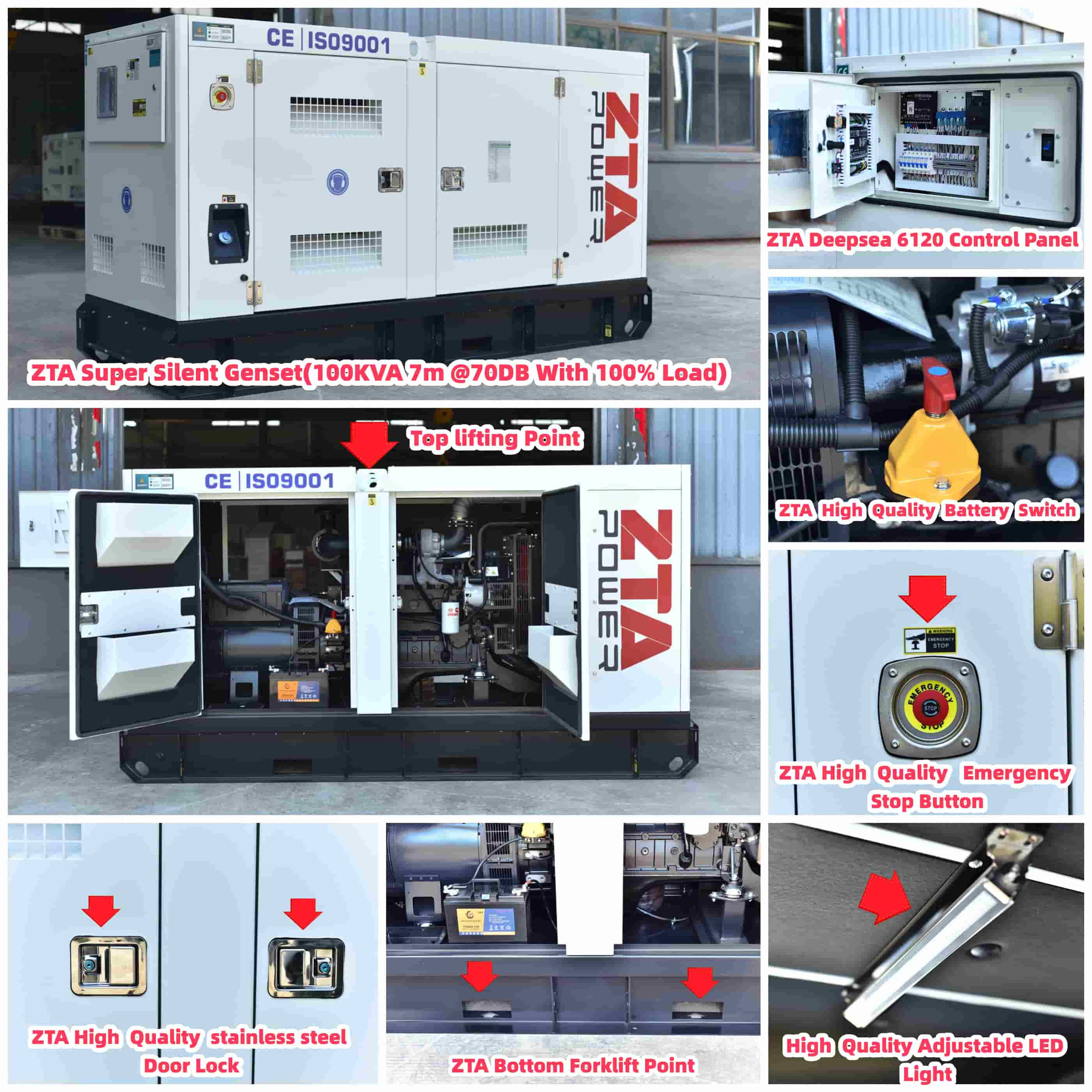

Advantage:
Super-Silent Operation
Achieves as low as 75 dB(A) at 7 meters under 100% load, thanks to high quality sound absorbing and fire resistant cotton insulation.
Durable Sound Proof Enclosure
Finished with premium outdoor grade paint that retains its like new appearance for years, even in harsh environments.
Easy Access Maintenance Doors
Dual side doors provide full, unobstructed access for routine servicing and filter replacement.
Internal LED Lighting
Built in lighting offers clear visibility inside the enclosure for convenient inspection and maintenance.
Integrated Base Fuel Tank
Includes a standard fuel tank supporting up to 8 hours of continuous operation.
Effortless Handling
Equipped with bottom forklift slots and top crane lifting points for safe and straightforward loading and transport.
Generator Set Specification
| Prime Power | Standby Power | |
| Power(kw) | 150 | 165 |
| Power(KVA） | 188 | 206 |
| Rate Speed | 50hz/1500rpm, 60hz/1800rpm | |
| Standard Voltage | 400/230v | |
| Available Voltage | 415/240V,380/220V,220/127V | |
| Rate AT Power Factor | 0.8 | |
| Diamension | Open Size: 2380 × 840 × 1560MM(L*W*H) | Silent Size: 3350 × 1100 × 1880MM(L*W*H) |
| Circuit Breaker | 400A | |
| Fuel Tank 8 Hours (L) | 350 |
Cummins 6CTA8.3-G2 Diesel Engine Datasheet
| Engine Brand |
DONGFENG CUMMINS ENGINE Co.,LTD |
|
Engine Model |
6CTA8.3-G2 |
|
No. of Cylinders |
6 |
|
Cycle |
4 Cycle |
| Compression ratio |
17.3:1 |
|
Bore ×Stroke |
114 x 135 mm |
|
Displacement (L) |
8.3L |
|
Energy in power output (gross) Prime Power(kw) |
163 |
|
Energy in power output (gross) Standby Power(kw) |
180 |
| Fuel consumption at 100% full load (L/h) | 42 |
Leroy-Somer’s TAL alternators are specially designed to meet the power needs of telecom towers and commercial and industrial buildings. TAL is compatible with most engine brands.
| Leroy somer Alternator Model | TAL-A44-M |
| Prime Power | 160kw/200kva |
| AVR Standard | R120(Shunt) |
| Voltage Available | 50HZ: 415/240V,400/230V, 380/220V, 220/127V, 60HZ, 480/277V, 220/127V |
| Insulation Class | H |
| Number of Wires |
6 |
| Pole | 4 |
| Protection | IP 23 |
|
Altitude |
≤1000 m |
| Overspeed | 2250 R.P.M. |
| Voltage Regulation | ± 1% |
|
Total Harmonic THD (**) in no-load |
< 3.5 % according to C.E.I. |
|
Total Harmonic THD (**) in linear load |
< 5 % according to C.E.I. |
|
Waveform NEMA = TIF (**) |
< 50 |
|
Waveform I.E.C. = THF (**) |
< 2% |
| Optional |
- Filters on air inlet: derating 5% - Filters on air inlet and air outlet (IP 44): derating 10% - Winding protections for harsh environments and relative humidity greater than 95% - Space heaters - Thermal protection for stator windings - Steel terminal box |
Advanced Control Panel
(UK Deepsea 6120,Smartgen 6120,Comap AMF 25,Deif Brand Etc.. Also Available Base on Customer Need)
Digital control panels (e.g., Deepsea, ComAp,) for precise monitoring and control.
Features such as auto-start/stop, load sharing, and remote monitoring.
| Deepsea 6120 | Deepsea 7320 | |
| Display Language | 18 | 18 |
| Languages can be stored in the module | 2 | 7 |
| RS232 port | -（Not available) | √ |
| RS485 port | ■*(*indicates that DSE857 communication module needs to be added.) | √ |
| Ethernet port | ■**(**indicates that DSE855 communication module needs to be added.) | ■**(**indicates that DSE855 communication module needs to be added.) |
| Short circuit protection | √ | √ |
| Negative phase sequence protection | √ | √ |
| Earth fault protection | -（Not available) | √ |

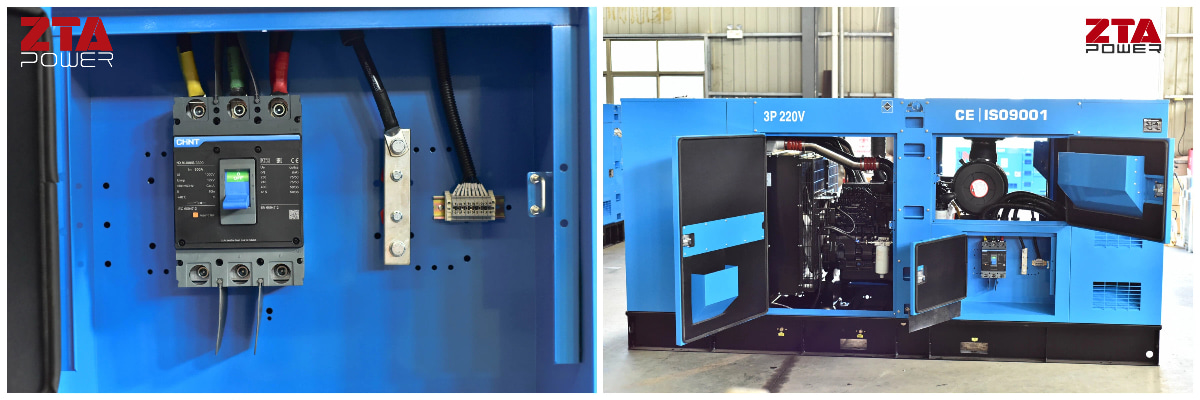

Circuit Breaker Specification
| Manufacturer | Delixi/Chit/Schneider/ABB |
| Capacity | 400A |
| Pole | 3P |

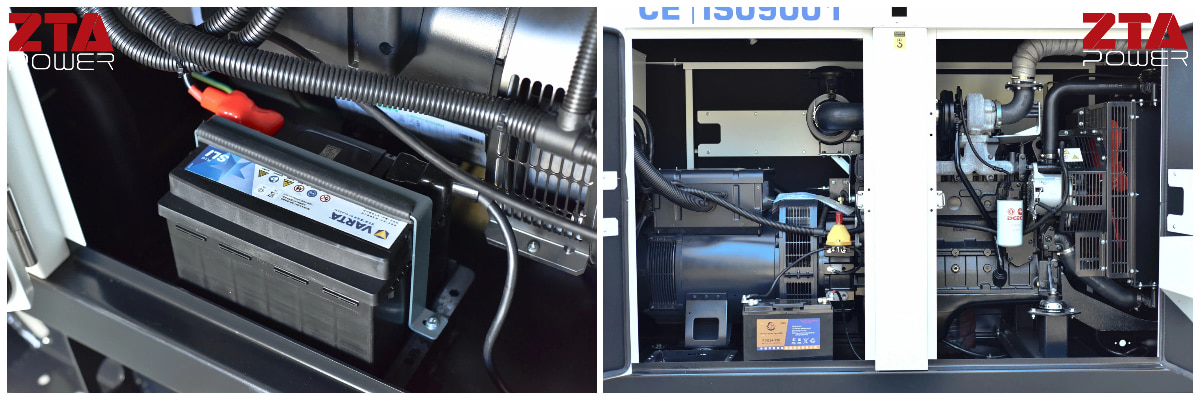

Starting Battery Specification
| Battery Voltage | 12V |
| Battery Capacity | 80A |
| Battery type | Free maintenance, sealed lead-acid type |
| Battery Quantities | 2 Pcs |
Standard Supply Scope
| ① Auto Control Panel | ⓶Main Circuit Breaker |
| ⓷ Cooling Radiator | ⓸8 hours Base Fuel Tank |
| ⓹One Set 3 Filters(Diesel Filter, Air Filter, Lub Oil Filter) Install On Generator Set | ⓺Starting Motor |
| ⓻Exhaust Silencer | ⓼Starting Batter |
| ⓽Float Battery Charger | ⓾Flange |
Optional Supply Scope
| ① ATS | ⓶ Fuel and water separator |
|
③ Auto Fuel Pump |
④ External daily fuel tank |
|
⓹Elec.coolant Heater |
⑥ Oil drain Pump |
|
⓻Trailer & Silent Canopy |
⓼Synchronization System |

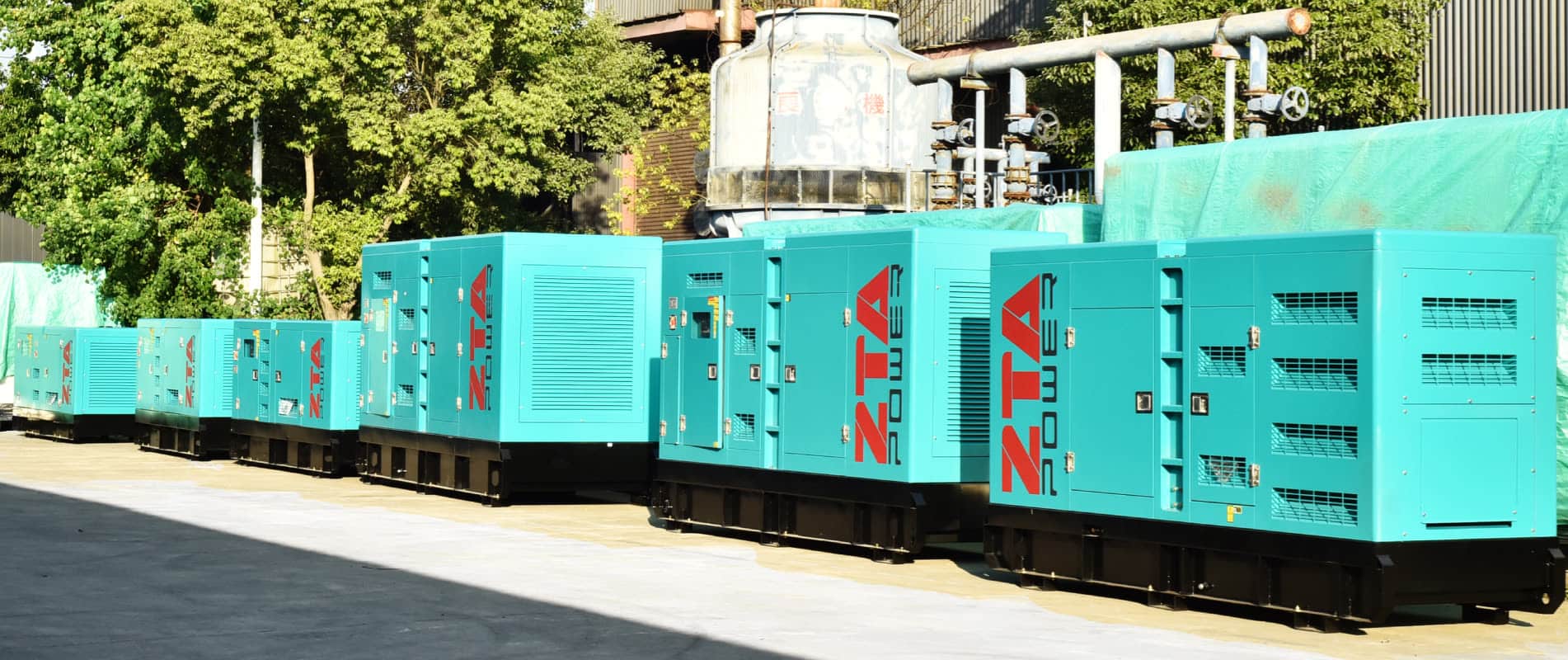

Silent Canopy Photo
See more Detail check on the Video below:
Notice: Set picture quality to 1080p to view in high definition
